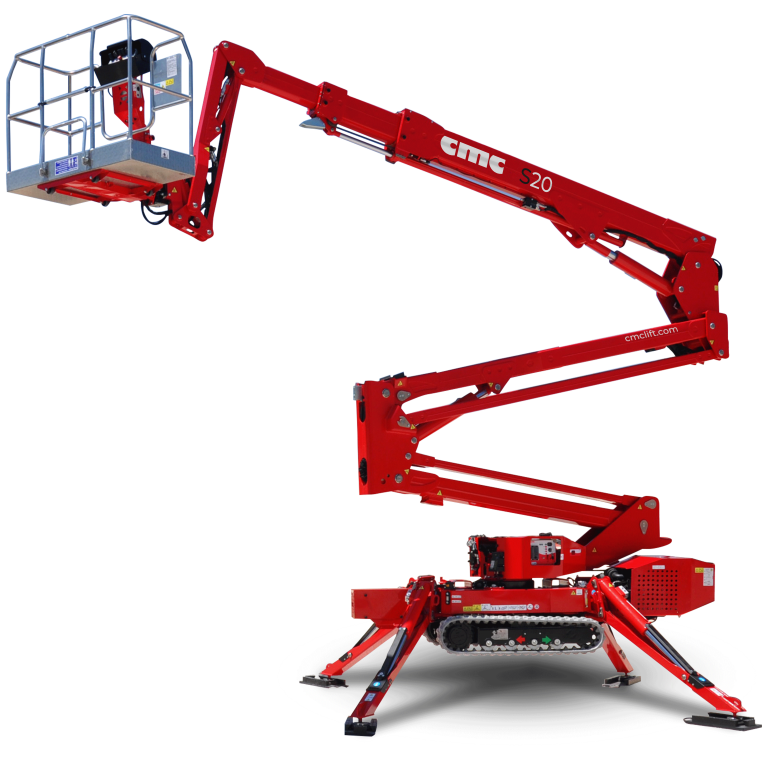

Honda iGX390 petrol engine; Hydraulically adjustable tracks in width; Black rubber tracks; Basket rotation +/-90°; Two-man basket 140x70x110 cm equipped with quick-release system and wheels; 200 Bar air/water hose in the basket; 230V/120V/110V and 12V electrical socket in the basket; Protective covers for outrigger cylinders; Display with error code detection; Proportional hydraulic controls; Proportional travel mode by radio remote control; Lifting hooks; Fixing points for transport; Double travel speed; Automatic outriggers leveling; Standard painting (RAL 3000); 24-months warranty (see warranty condition).
| Feature / Specification | Measurement / Value |
| Max. working height | 19,9 m |
| Platform height | 17,9 m |
| Max. capacity in basket | 230 kg |
| Max. reach with 230 kg | 10,4 m |
| Turret rotation | +/- 180° (360° non-continuous) |
| Basket dimensions | 1,4 x 0,7 x 1,1 m |
| Total weight | 2980 Kg |
