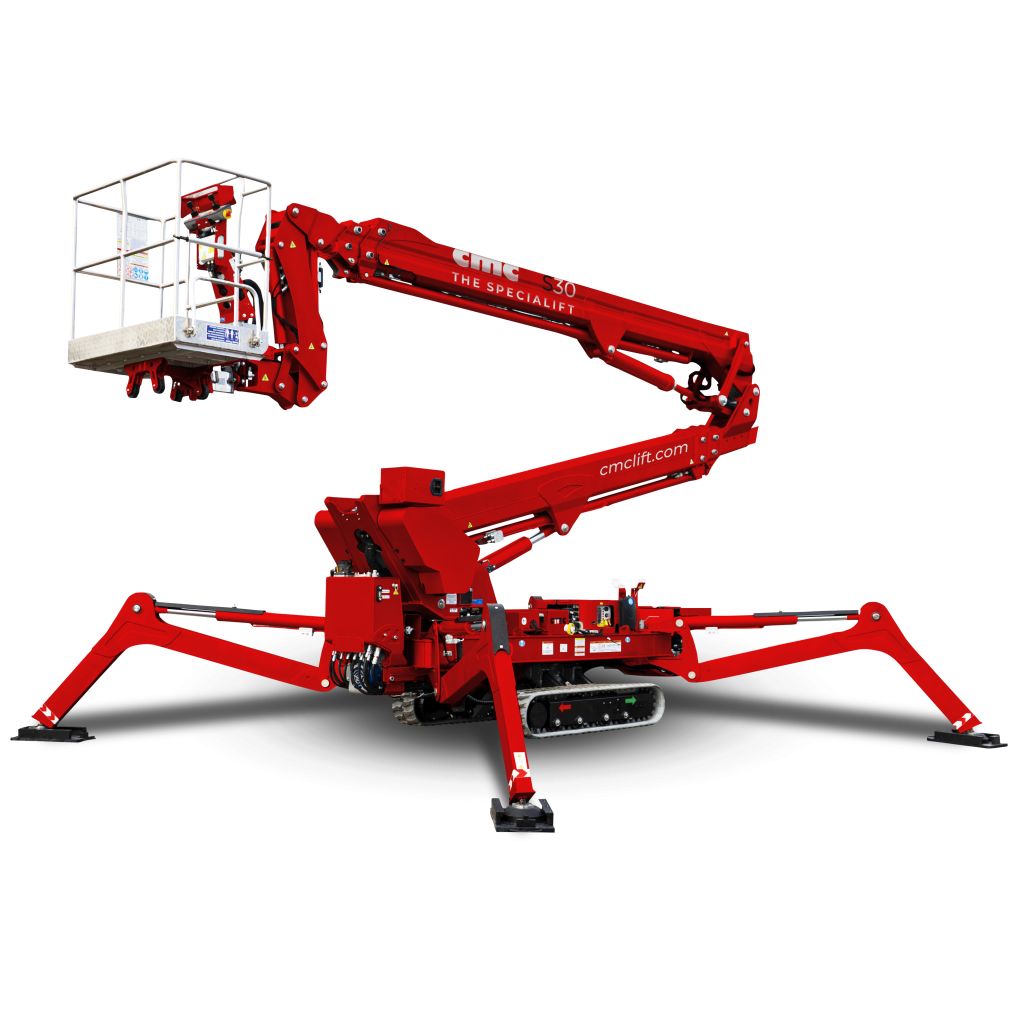

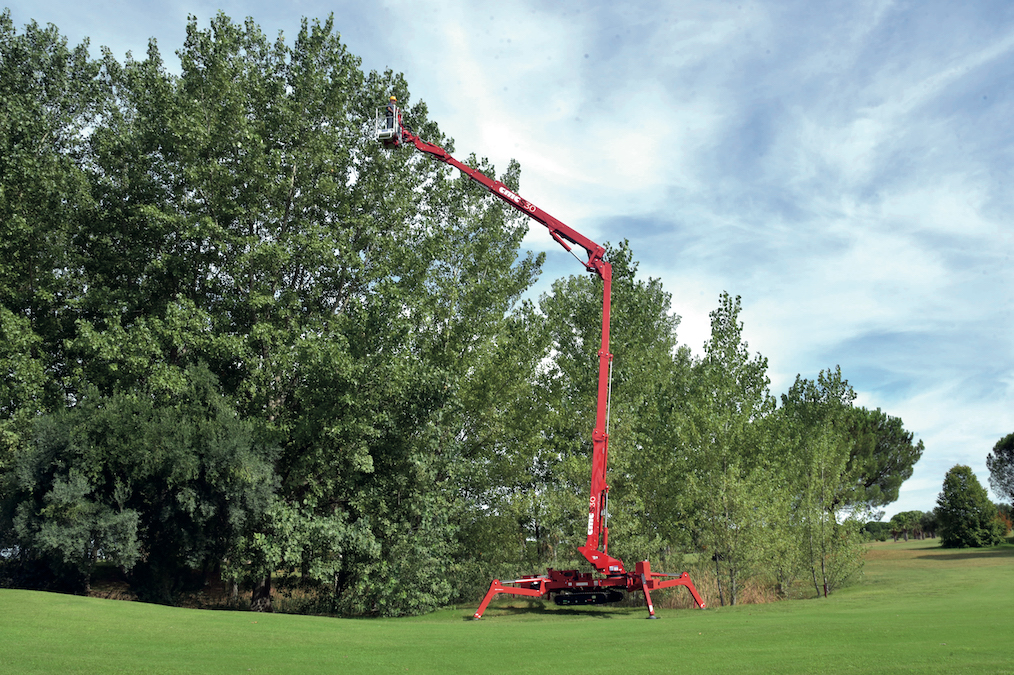

    Aerial Platform S30

    A bundle of power and technology capable of performing in any application. It has four stabilisation areas, two working areas and climbing outriggers for working on all types of terrain and reaching even the most difficult spots with its maximum working height of 30.3m, lateral outreach of 15.4m and the abillity to work in negative down to -6.7m.

    Overview

    Expand All
    Specifications
    Feature / Specification Measurement / Value
    Max. working height 30,3 m
    Platform height 28,3 m
    Max. capacity in basket 230 kg
    Max. reach with 80 kg 15,4 m
    Negative working capability -6,7 m
    Turret rotation +/- 200° (400° continuous)
    Basket rotation +/- 90°
    Basket dimensions 1,7 x 0,7 x 1,1 m
    Total weight 4285 Kg
