CMC SPIDER LIFTS S32

    Please type in your email address to download the spec sheet.

    By entering your email address, you can access the specification sheet and consent to the processing of personal data in accordance with our Privacy Notice.

    Aerial Platforms

    Walk Around

    Top Features

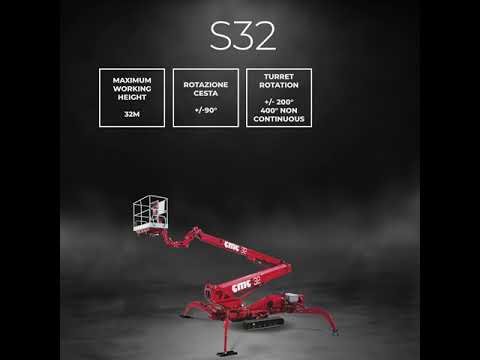

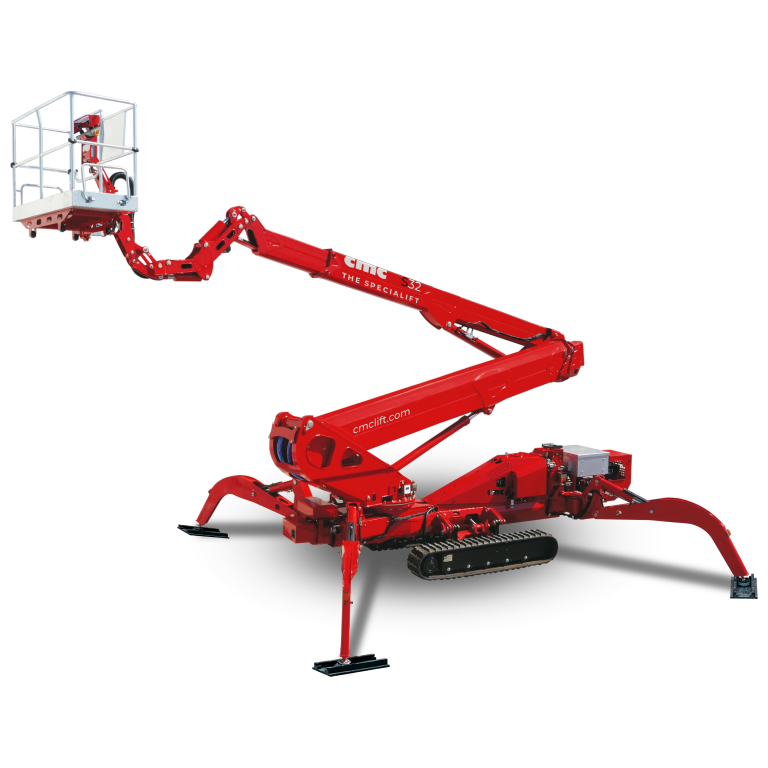

    Aerial Platform S32

    Astonishing numbers for this aerial platform capable of reaching the height of 32 metres, but also able to work down to -3.2 metres below the level of the platform, all with the guarantee of an automatic guidance and control system, one of the most advance technology developed by CMC. The machine has an incredibly compact body design, the tracks that can be adjusted in height and width, and is self-loading.

    Overview

    Expand All
    Specifications
    Feature / Specification Measurement / Value
    Max. working height 32 m
    Platform height 30 m
    Max. capacity in basket 220 kg
    Max. reach with 120 kg 16 m
    Negative working capability -3,2 m
    Turret rotation +/- 200° (400° continuous)
    Basket rotation +/- 90°
    Basket dimensions 1,7 x 0,7 x 1,1 m
    Total weight 7255 Kg
