Bomag Pavers & Feeders BF 700 C-3

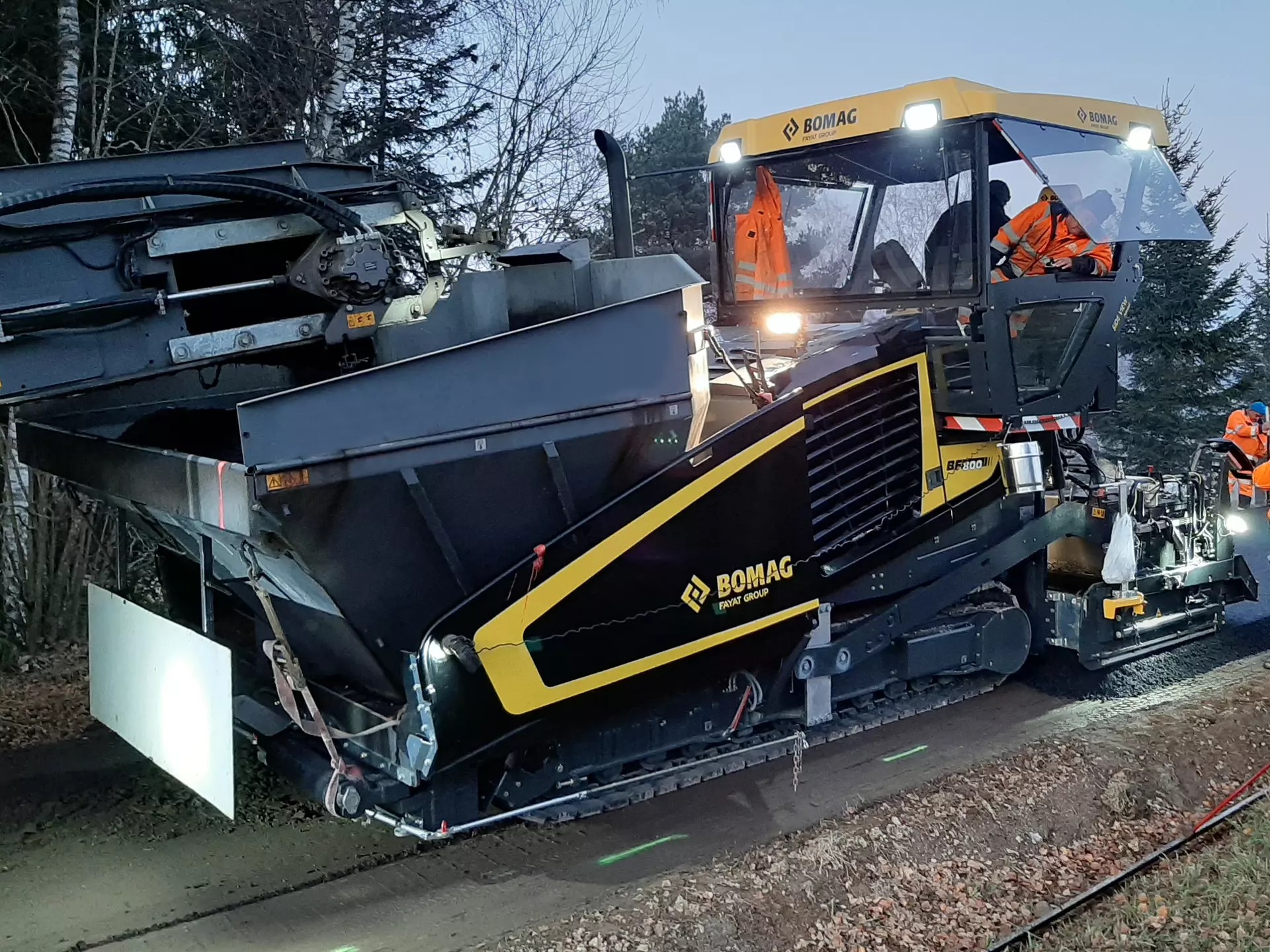

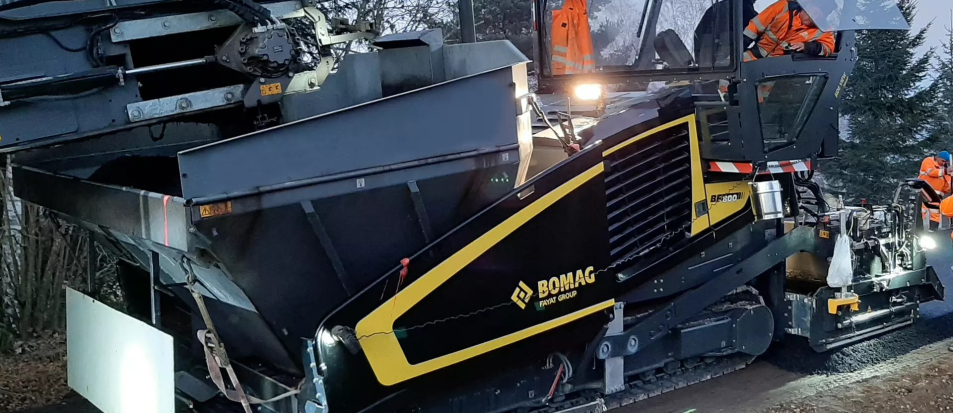

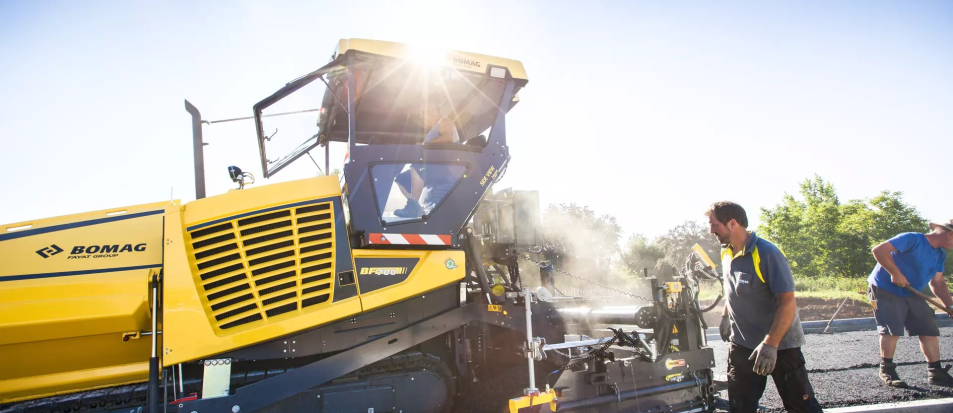

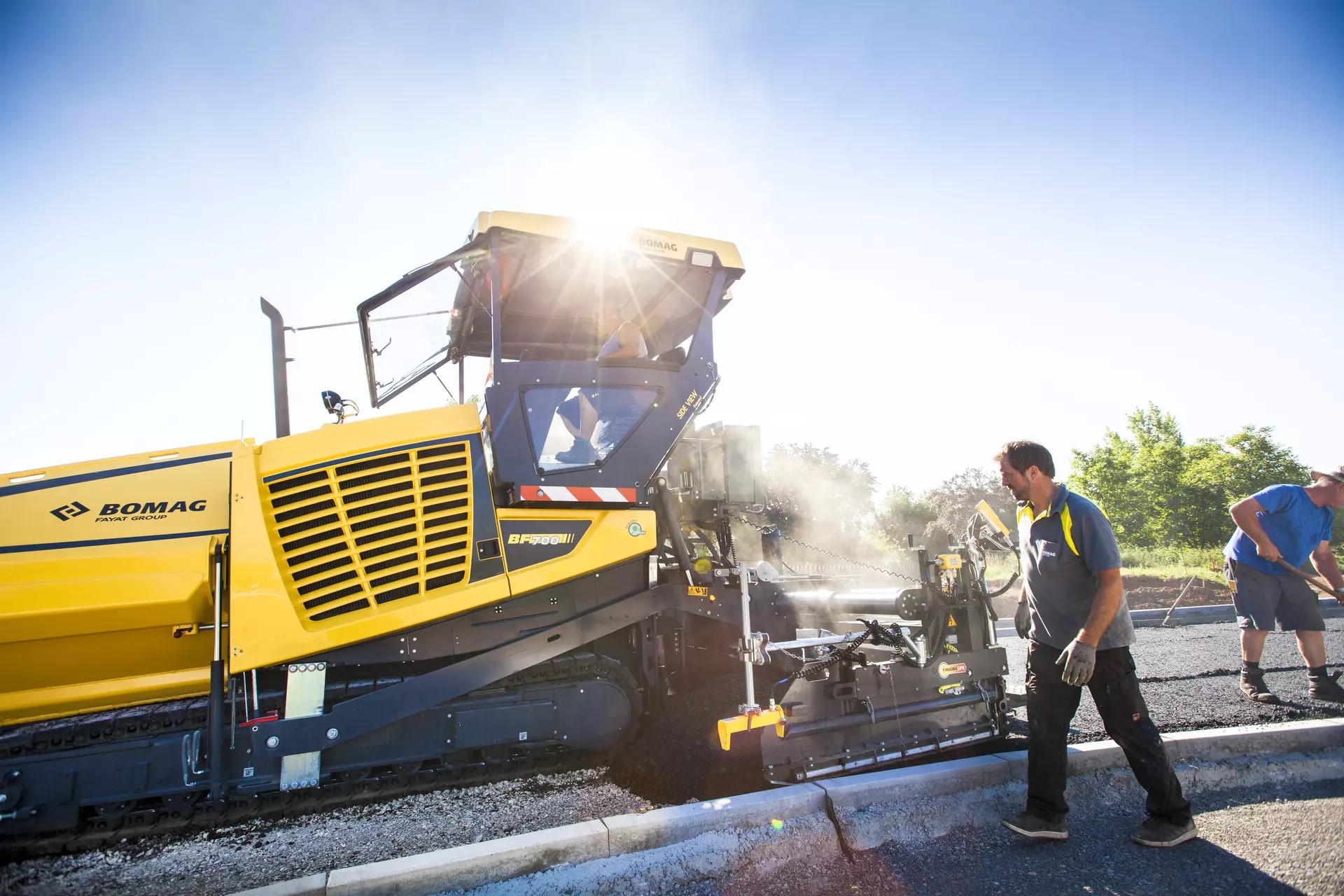

BOMAG Paver BF 700 C-3
1
2
3
Get A Quote download
spec sheet

    Please type in your email address to download the spec sheet.

    By entering your email address, you can access the specification sheet and consent to the processing of personal data in accordance with our Privacy Notice.

    Road Construction Equipment

    Walk Around

    Top Features

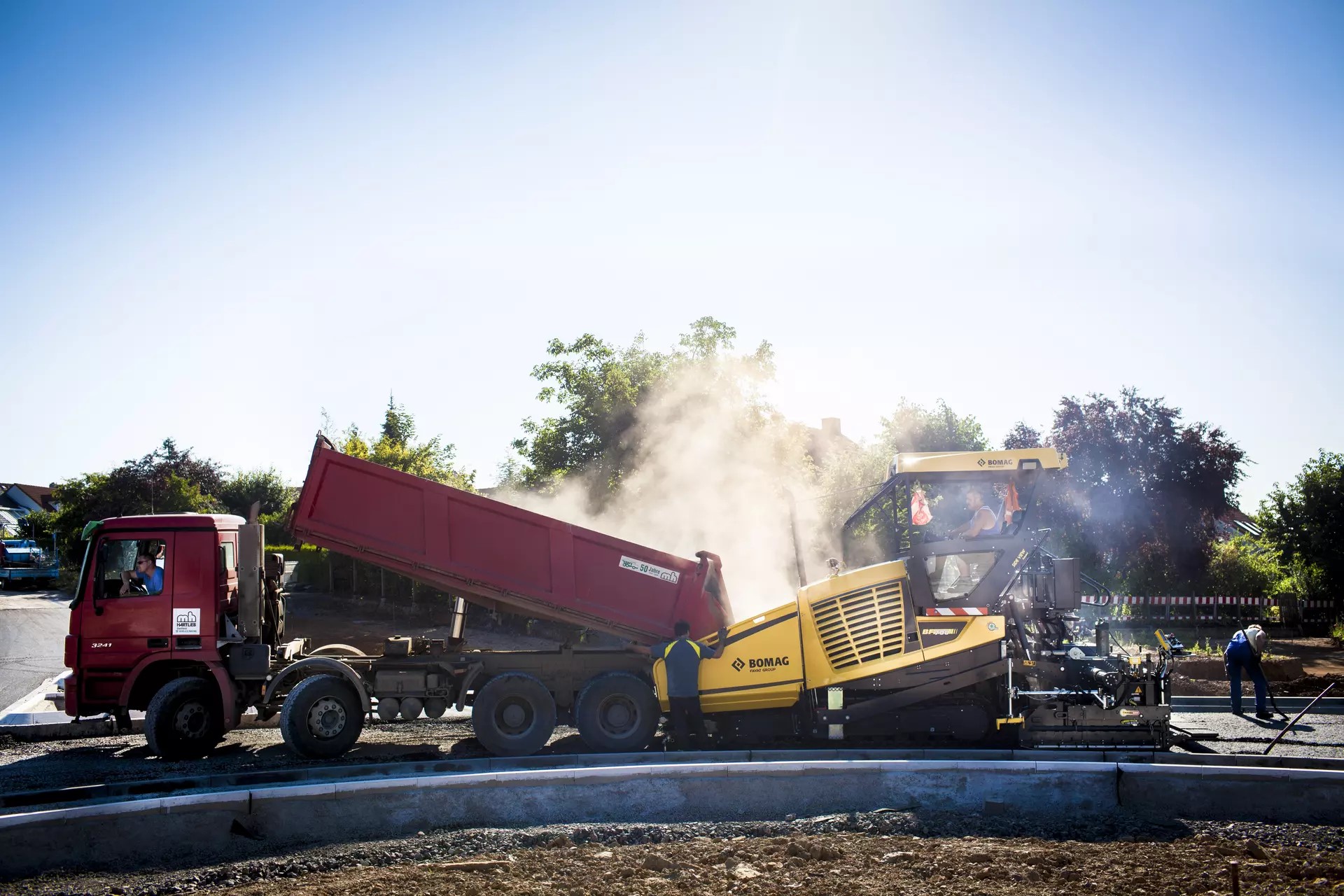

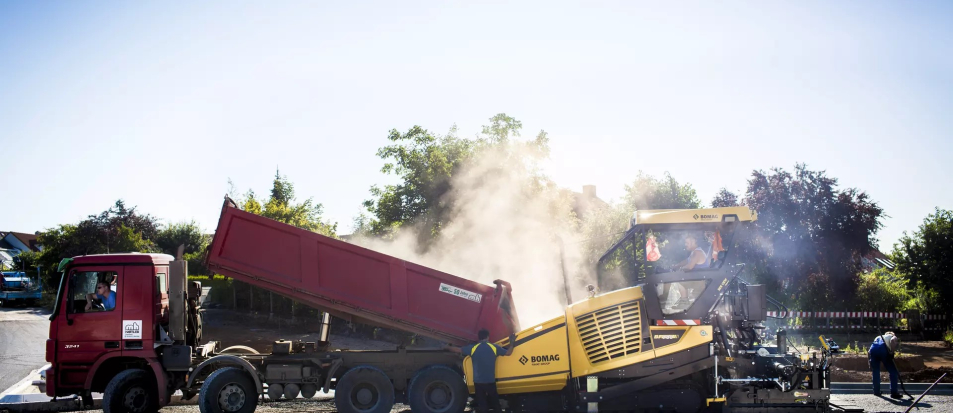

    Universal pavers: In their class, a class of their own.

    With their optimal combination of productivity and flexibility, these all-rounders have everything you need for high-quality, efficient road construction.

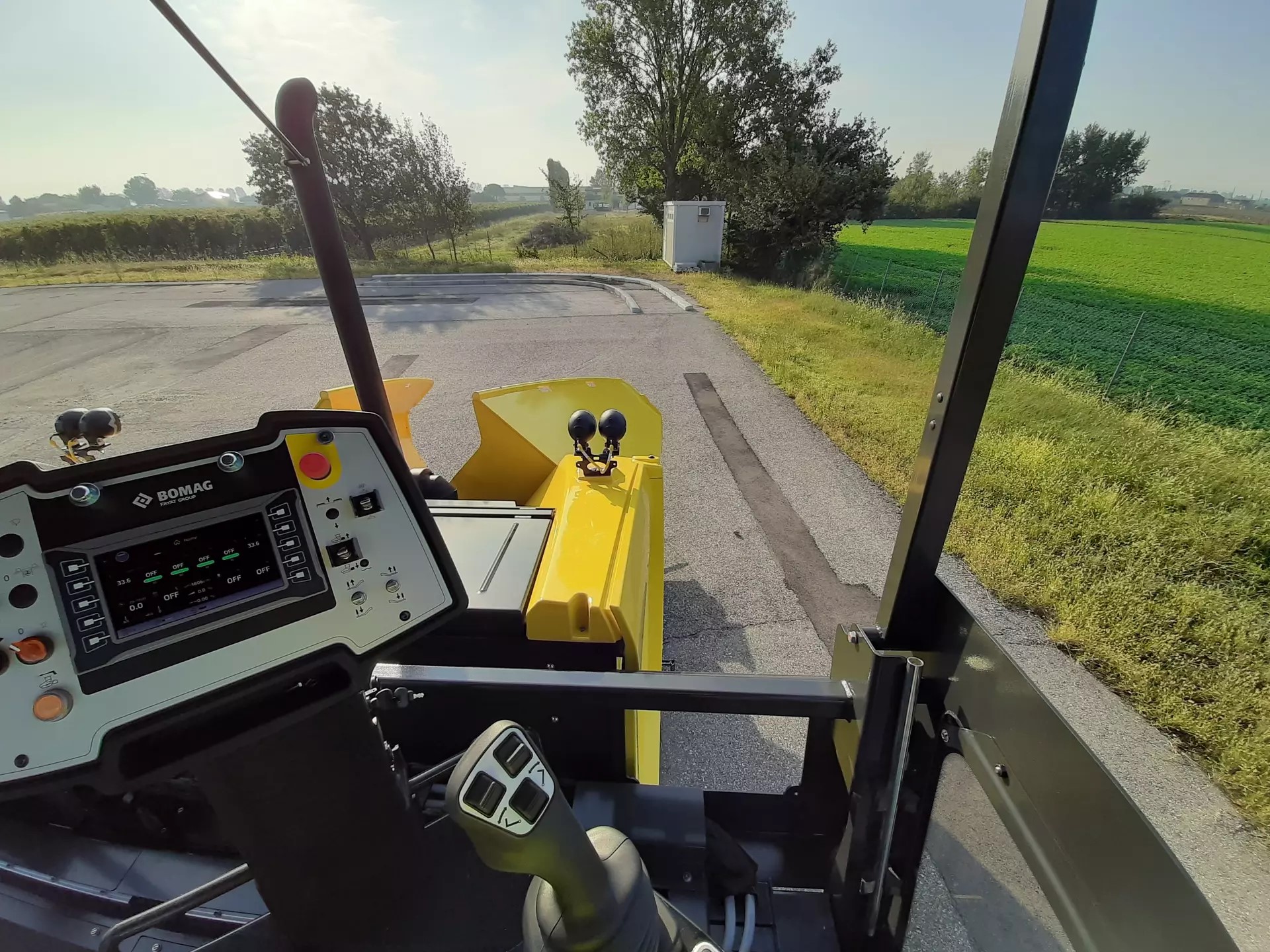

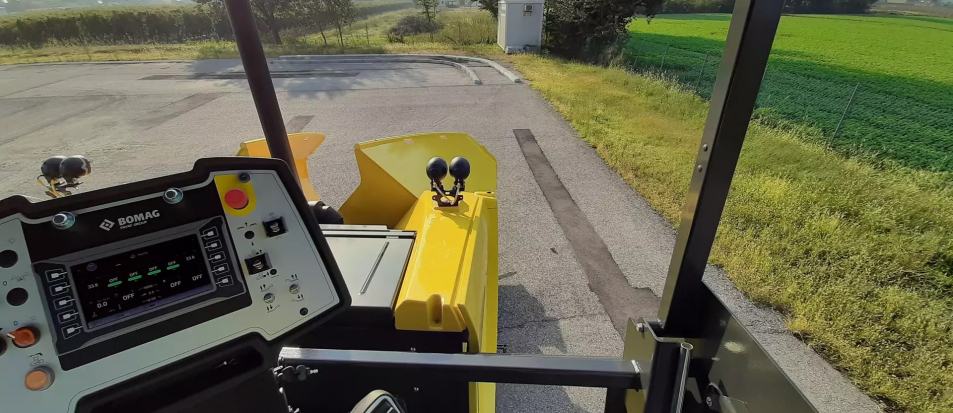

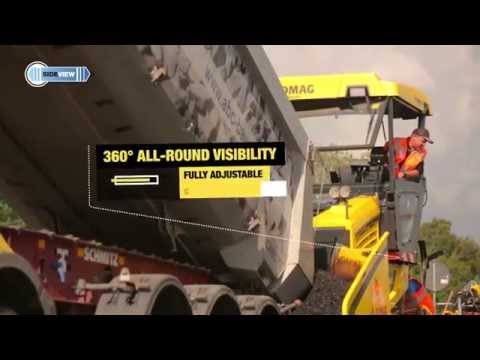

    • Outstanding visibility of the construction site for perfect coordination in the convoy

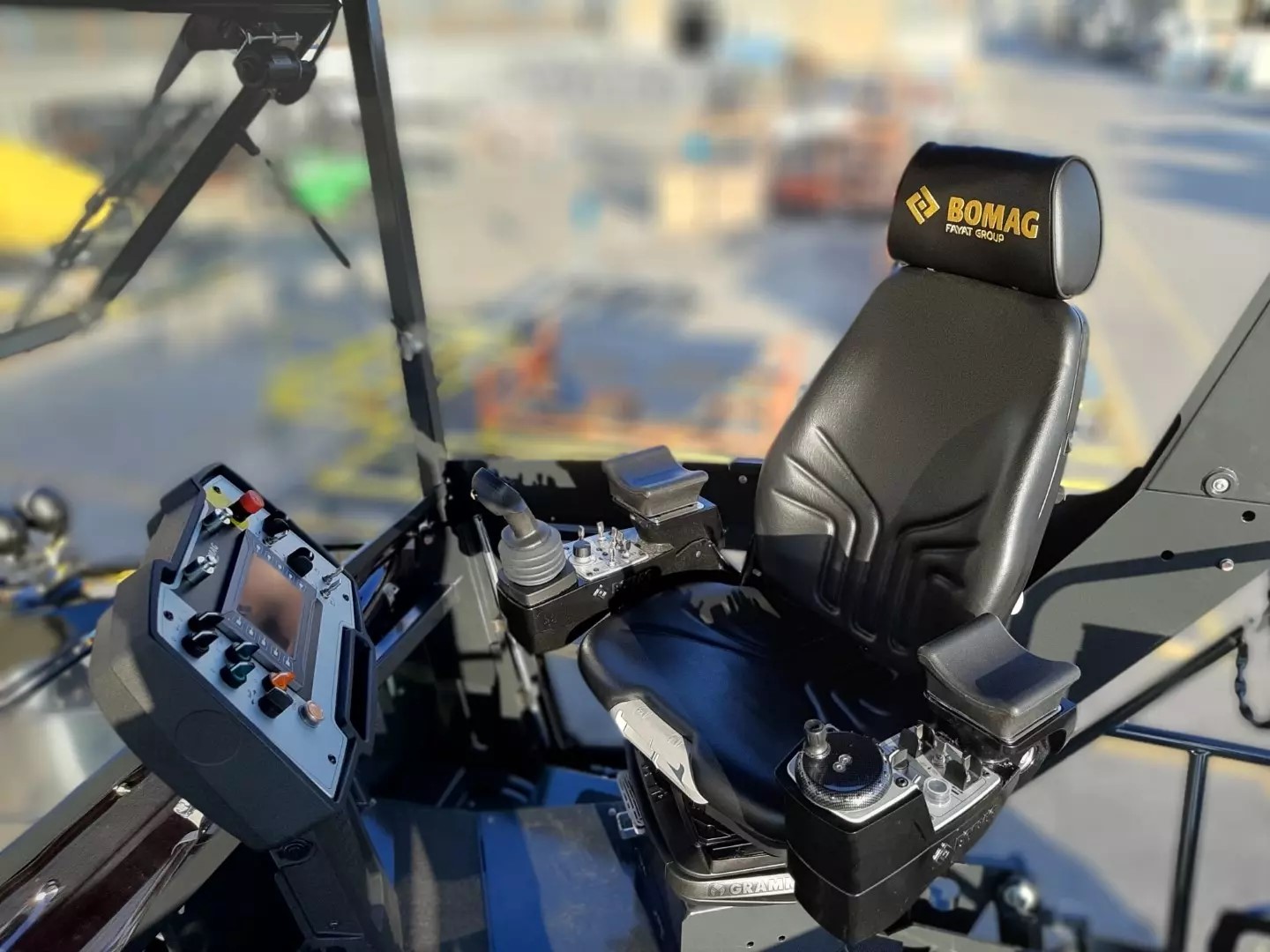

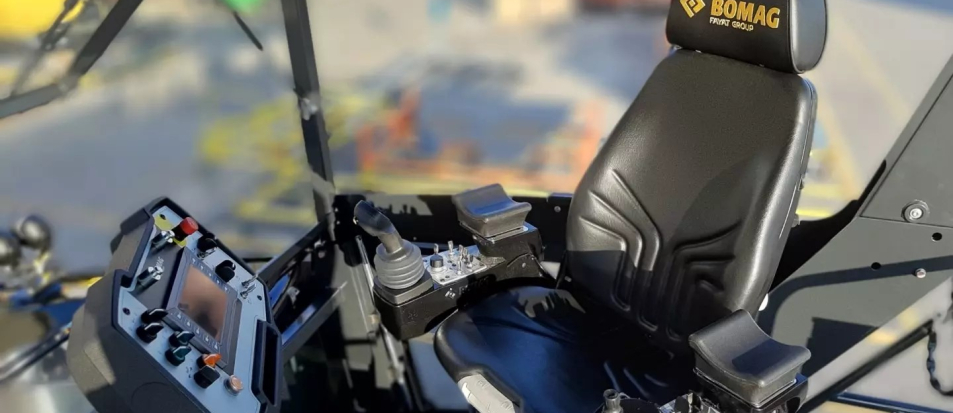

    • Driver platform with maximum comfort for greater motivation and productivity
    • A-PAVE operating concept with intuitive display and practical assistance functions
    • All-round weather protection: Work optimally protected in any weather
    • Transparent and efficiently networked: JOBLINK interface for data exchange
    • ECOMODE regulates the hydraulics according to the required power
    • Intelligent motor management reduces fuel consumption and noise emissions
    • Extremely durable MAGMALIFE heating system: Fast heat-up times and homogeneous heat distribution by means of aluminium plates
    • Short set-up times thanks to QUICK COUPLING system
    • Many paving widths for maximum flexibility

    Specs

    Expand All
    Specifications
    Category Specification Unit Value
    Weight (CECE) With S 500 screed / S 600 screed kg 21,300 / 21,800
    Dimensions Transport length mm 6,540
    Transport width mm 2,550 / 3,000
    Transport height mm 3,061
    Travel characteristics Travel speed km/h 0–4
    Working speed m/min 0–25 (variable)
    Drive Engine manufacturer DEUTZ
    Engine type TCD 6.1 L06
    Emission stage Stage V / TIER 4f
    Cooling Liquid
    Number of cylinders 6
    Rated power kW 129
    Rotary speed min⁻¹ 2,000
    Crawler assembly Total length mm 2,975
    Width mm 300
    Hopper Capacity m³ 7.0
    Width (wings open) mm 3,360
    Width (wings closed) mm 2,490
    Length mm 1,900
    Filling height (middle) mm 563
    Conveyor Number 2
    Rotary speed U/min 64
    Individual control Standard
    Reversing operation Yes
    Auger Number 2
    Auger diameter mm 400
    Rotary speed U/min 100
    Reversing operation Standard
    Screed Type S 500 / S 600
    Basic width (retracted) mm 2,550 / 3,000
    Basic width (extended) mm 5,000 / 6,000
    Min. width with reduction skids mm 1,650 / 2,100
    Mat thickness mm 300
    Screed plate depth mm 400
    Screed plate thickness mm 15
    Heating Electric
    Crown % −2.5 to +4.5
    Tamper frequency Hz 0–29
    Vibration frequency Hz 20–58
    Basic weight kg 4,400 / 4,900
    Max. working width mm 9,000
    Filling capacities Fuel l 285
    Hydraulic oil l 160

    Equipment

    Expand All
    Standard Equipment

    • Operator Compartment

      • SIDEVIEW

      • Driver’s seat with swivel and side-shift

      • Dashboard protection

      • Hydraulic hinged roof

      • A-PAVE operating concept

      • Intuitive operation via display

      • Electronic machine management

      Tractor

      • ECOMODE

      • Separate control of hopper wings

      • Cleaning kit

      • Hydraulic, height-adjustable auger

      • Track scraper

      • Two proportionally controlled, reversible wear-resistant cast augers with separately replaceable screw blades

      • Two independent, reversible scraper belts with high-wear-resistant plates

      • Rubber track pads

      Screed

      • L.C.S. screed relief and traction increase system

      • Screed temperature control

      • MAGMALIFE aluminium heating plates

      • MAGMALIFE automatic screed heating

      • Hydraulic screed lock

      • Crown adjustment

      • Side control of auger and scraper belts

      • Electronic side-mounted driver’s stand with display, including:

        • Crown profile and automatic inclination

        • Integrated levelling controller

        • Material calculator

      Other Equipment

      • Tools

      • Eight LED work lights

      • 20 / 30 kVA generator

      • Two 230 V sockets

    Optional Equipment

    Operator Compartment

    • Hydraulic and electric movable SIDEVIEW platform

    • Side windscreened platform

    • Seat warmer

    • Asphalt steam extraction

    • Advanced operating concept

    Tractor

    • Central lubrication system

    • Optional paint finish

    • Biodegradable hydraulic oil

    • Hydraulic hopper front flap

    • Hydraulically suspended and dampened push rollers

    • Ultrasonic sensors for conveyor belt control

    • Electric track scraper

    Screed

    • Hydraulic crown adjustment

    • Hinged side plates

    • Heated side plates

    • S 500 and S 600 extensions:

      • 250 mm

      • 750 mm

      • 1,250 mm

    • Reduction shoes

    • Edge shaper 45° / 60°

    Levelling Systems

    • Height and cross-slope sensing using ultrasonic or mechanical sensors

    Other

    • Fleet management (BOMAG TELEMATIC)

    • Moon-light balloon

    • Joblink data interface

    • Truck Dock stop light system for communication with the truck

    • Camera system

    • Smart sensors for screed width, tow point, and crown
