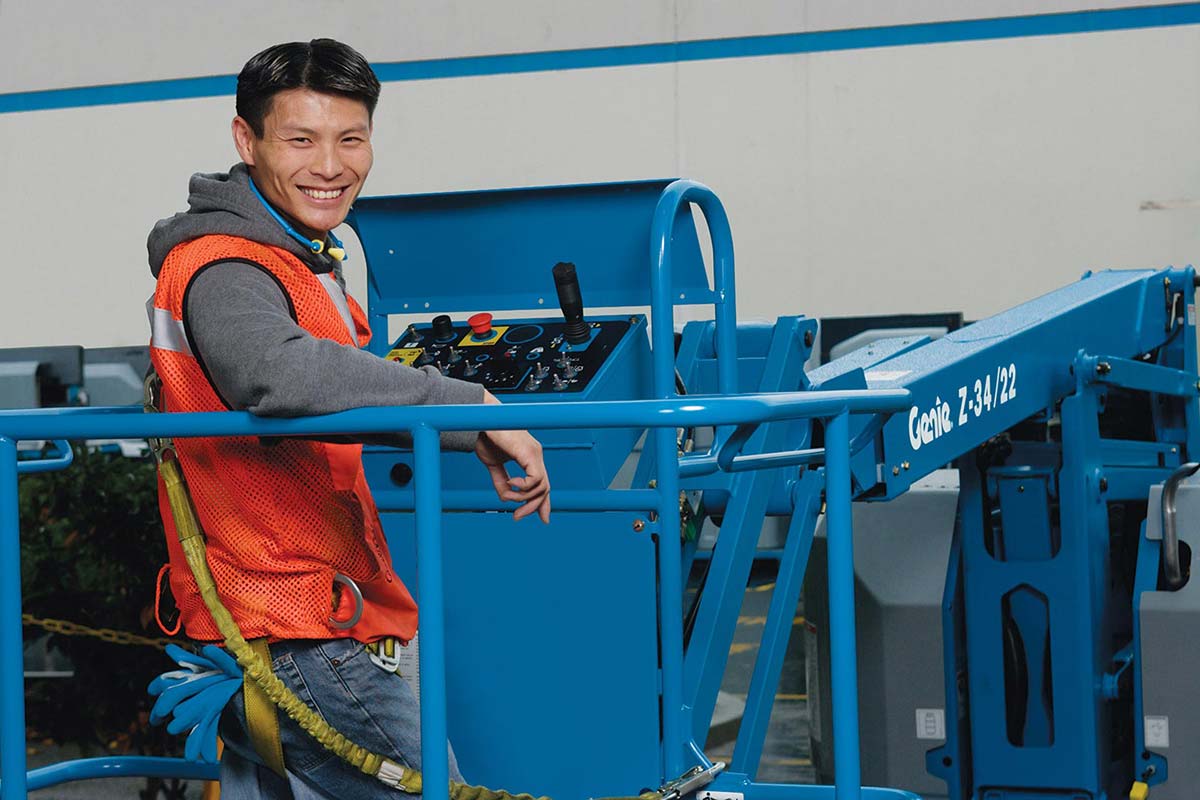

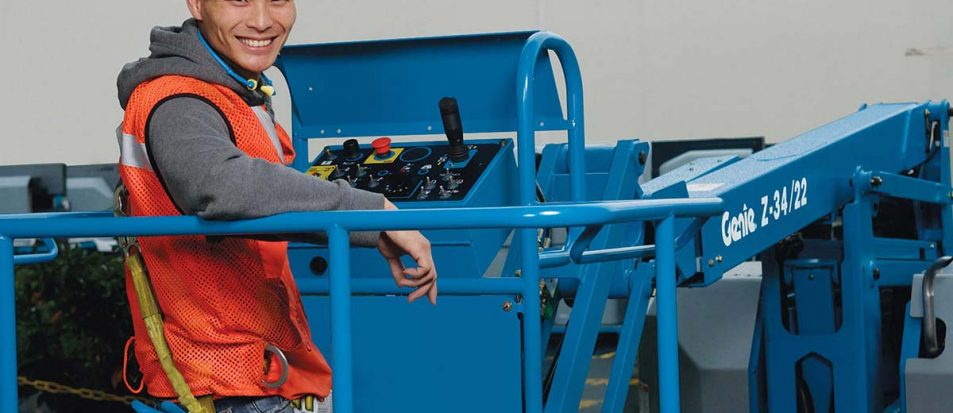

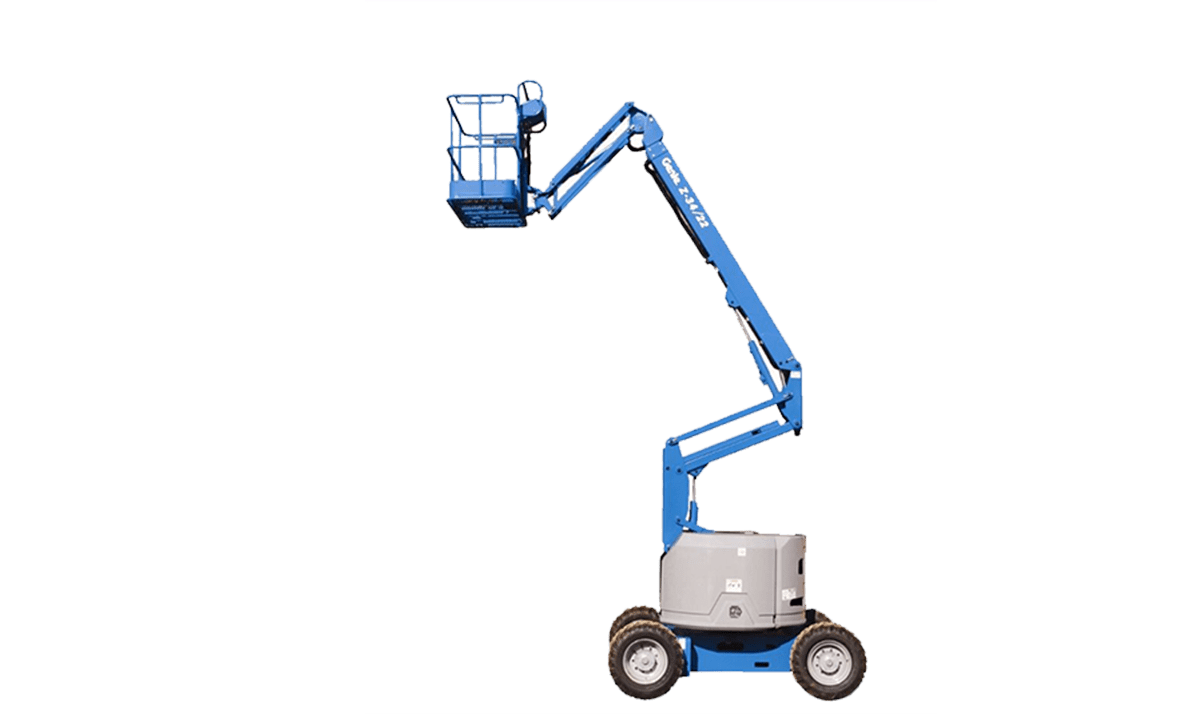

Genie ARTICULATED BOOM LIFTS Z-34/22 IC

Get A Quote download
spec sheet

    Please type in your email address to download the spec sheet.

    By entering your email address, you can access the specification sheet and consent to the processing of personal data in accordance with our Privacy Notice.

    Aerial Platforms

    Walk Around

    Top Features

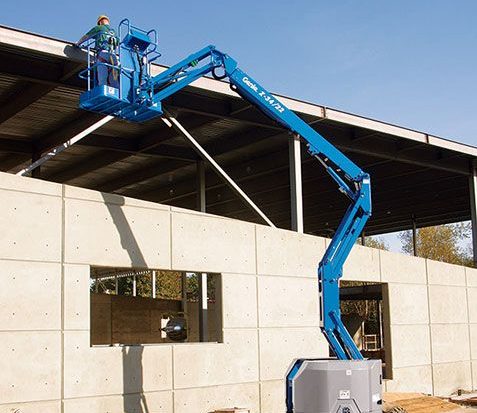

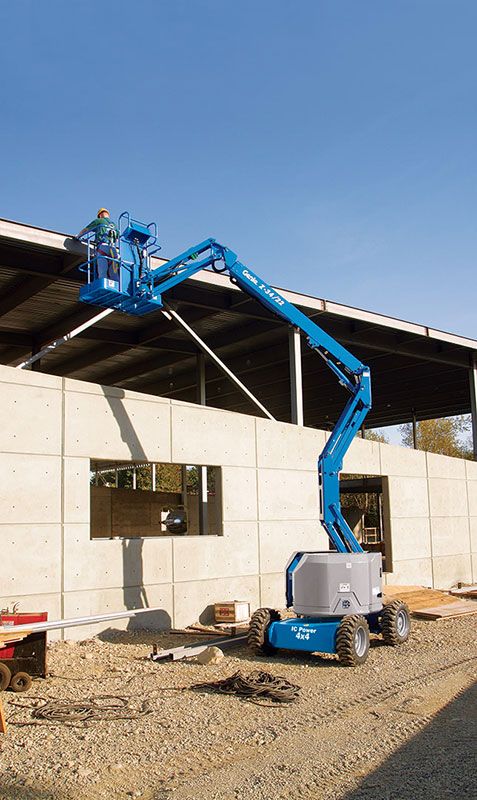

    Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.

    Overview

    • Zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas
    • Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
    • 4WD and up to 45% gradeability for superior terrainability
    • Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
    • 4 ft (1.22 m) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers

    Overview

    Expand All
    Specifications
    Specification Value
    Max Working Height 40 ft 7 in | 12.54 m
    Max Horizontal Reach 22 ft 3 in | 6.78 m
    Max Up and Over Clearance (riser extended) 15 ft 1 in | 4.6 m
    Platform Capacity 500 lb | 227 kg
