Genie ARTICULATED BOOM LIFTS ZX-135/70

Get A Quote download
spec sheet

    Please type in your email address to download the spec sheet.

    By entering your email address, you can access the specification sheet and consent to the processing of personal data in accordance with our Privacy Notice.

    Aerial Platforms

    Walk Around

    Top Features

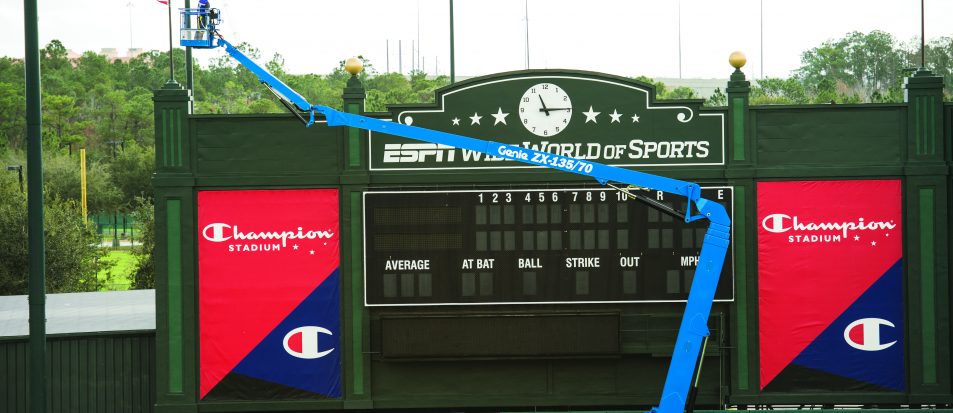

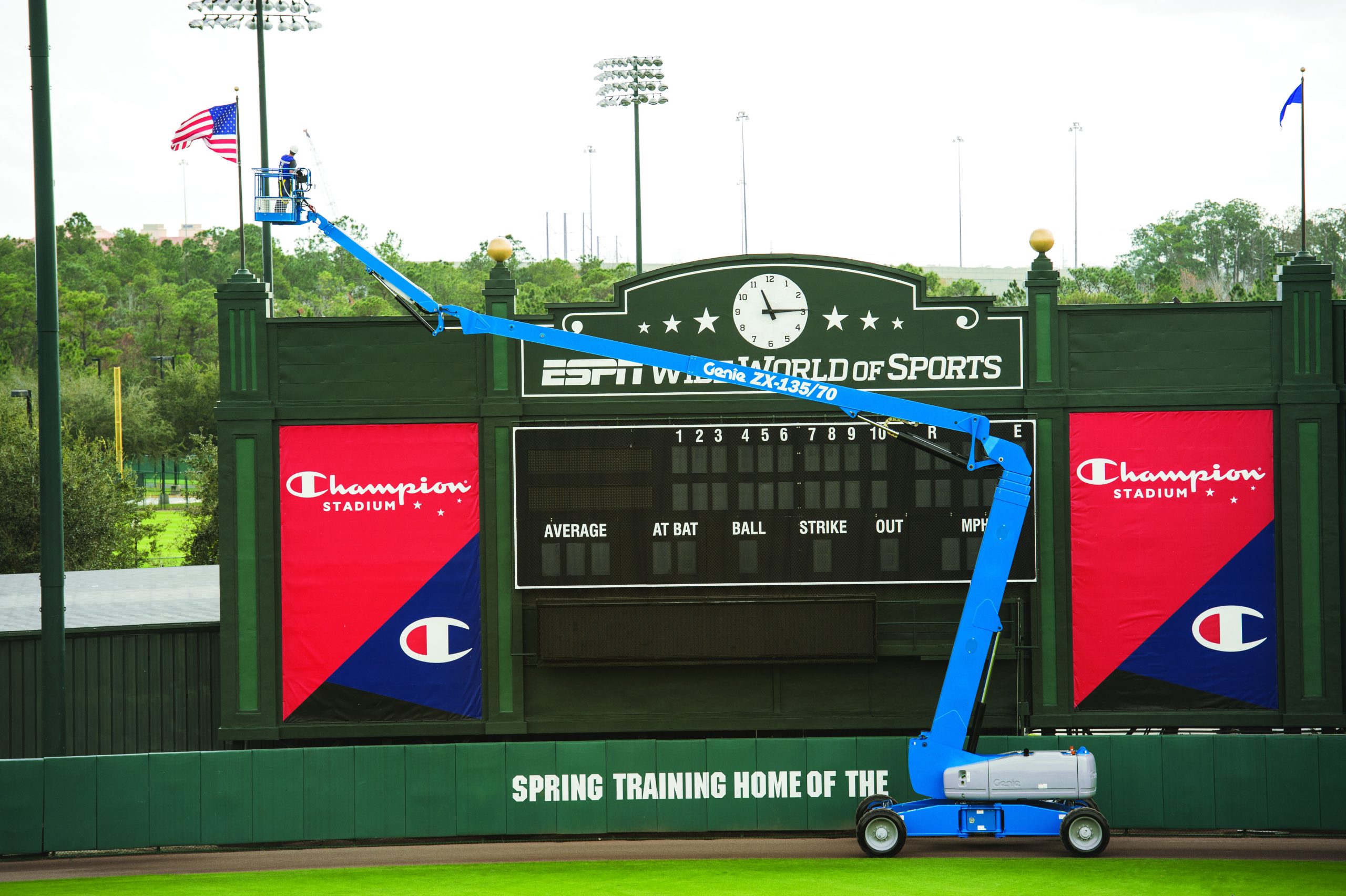

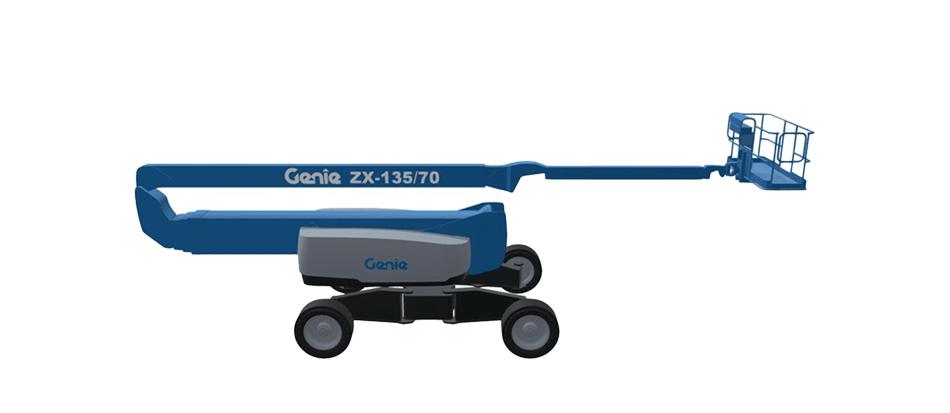

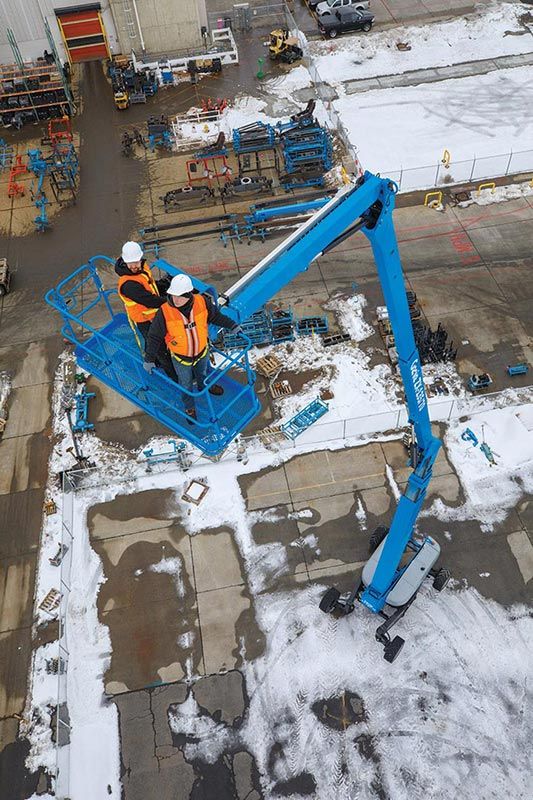

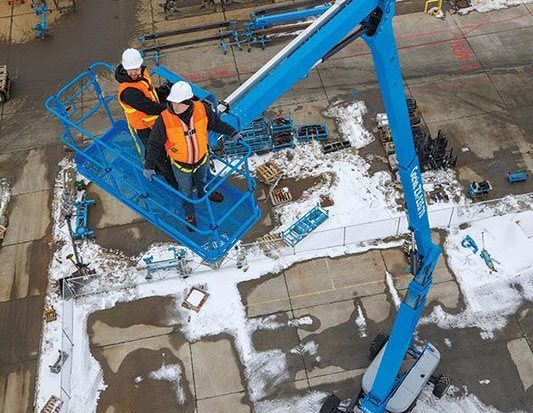

    Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.

    Overview

    • Mini Genie X-Chassis™ system extends and retracts to provide both stability on the job and a narrow profile for transport
    • Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion
    • 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
    • Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability

    Overview

    Expand All
    Specifications
    Specification Value
    Max Working Height 141 ft | 43.15 m
    Max Horizontal Reach 69 ft 9 in | 21.26 m
    Max Up and Over Clearance (riser extended) 75 ft 6 in | 23.01 m
    Below Ground Reach 19 ft 3 in | 5.87 m
    Platform Capacity 600 lb | 272 kg
