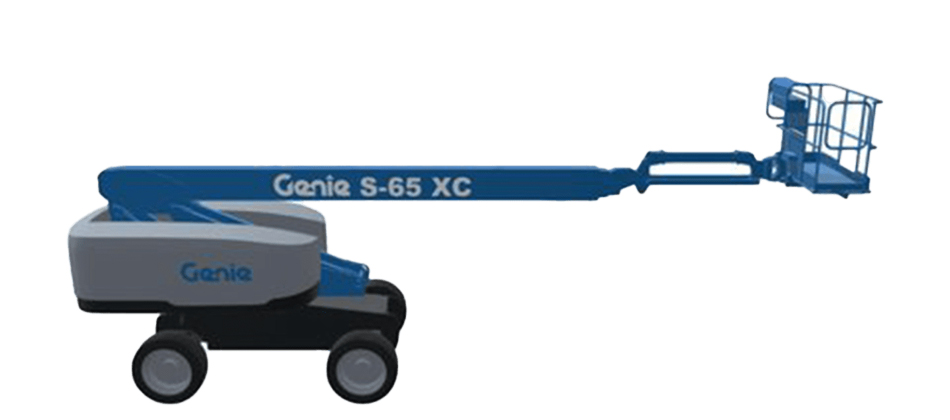

Genie® S®-65 XC™ and S-65 TraX™ telescopic boom lifts are the redesigned Xtra Capacity™ version of the popular Genie S-65 and S-65 Trax. They can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to their dual lift capacity and offer innovative features to help increase jobsite efficiency.
S-65 XC Overview
• Full-time active oscillating axle and full-time positive traction for superior terrainability
• Chassis tilt sensor technology maximizes access to hard-to-reach work areas
• 1.52 m (5 ft) robust articulating jib
• Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
• Automatic envelope control technology for a smooth operating envelope
• Zero-load field calibration and onboard diagnostics maximize serviceability
| Specification | Value |
|---|---|
| Max Working Height | 71 ft | 21.81 m |
| Max Horizontal Reach | 54 ft 2 in | 16.51 m |
| Below Ground Reach | 8 ft 8 in | 2.65 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width | 8 ft 2 in | 2.49 m |
Choose similar models from our latest and best selling range of products
OPERATING WEIGHT : 1,000 lbs | 454 kg
HORSEPOWER : 48
